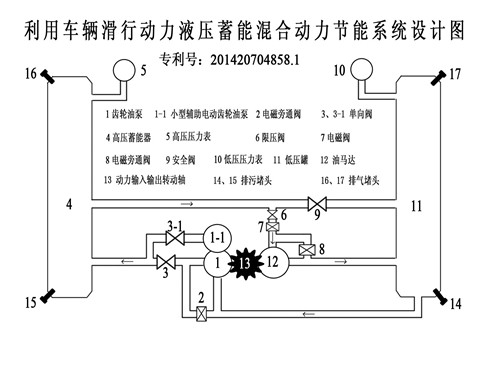

I. the working principle of energy saving hybrid power system using vehicle sliding power (patent number: 201420704858.1)
Install a throttle position switch in the vehicle electronic throttle pedal, when the driver's right foot to depress the accelerator pedal vehicle refueling, electromagnetic by-pass valve 2 is opened, the energy storage system is not working condition; when the driver foot from the accelerator when releasing the vehicle into the sliding state, when the electromagnetic bypass valve 2 is closed, the vehicle power system the taxi started working storage. When the vehicle needs afterburner, the driver right foot on the accelerator when the electromagnetic bypass valve 2 is opened, the energy storage system (gear pump) is not working condition, and an electromagnetic valve 7 is opened to release the 12 motor oil storage pressure within the system, the oil motor 12 began to work, instead of a motor vehicle walk; when the pressure of energy release to the rated pressure, the pressure limiting valve 6 closed, low pressure rated output, the vehicle engine started to work. When the oil motor 12 does not work, the electromagnetic bypass valve 8 is in normally open state, and the solenoid valve 7 is in a closed state. When the gear oil pump 1 works, the electromagnetic bypass valve 8 is in the open state; when the driver's right foot leaves the accelerator pedal and the vehicle slides, the electromagnetic bypass valve 8 is in a closed state.
1-1 small auxiliary electric gear pump is to use the surplus power of the engine to do the work on the energy storage system and work for a long time.
The accumulator system and the power input and output shaft 13 are connected and explained
First, disconnect the transmission power shaft after the installation of a directional coupler, avoid energy storage system when engine fuel consumption and drag loss of power; two, in the end of the power input coupler, an output shaft 13 and gear pump 1 through three, at the same time in gear connection; coupler end power input and output shaft 13 and motor oil 12 through the gear connection.
Two, "air cooling air conditioning can be installed on the water condenser of energy-saving pipeline" patent technology (patent application number: 201310374752.X)
This patented technology, as a result of the installation of water cooling condenser energy saving piping system in the traditional air cooling air conditioning system, has the advantages of strong adaptability and easy assembly and disassembly. The utility model can increase the refrigerating heating power by 30%, and at the same time reduce the work current by about 30%. Working principle: two stage structure is formed through condensation condensation and air-cooled condensing water cooled condenser, can effectively solve the traditional air conditioning single air-cooled condensation mode result in condensation of high pressure, high temperature refrigerant compressor, heavy load, high temperature, abrasion, high noise, high energy consumption and low efficiency of cooling problems.

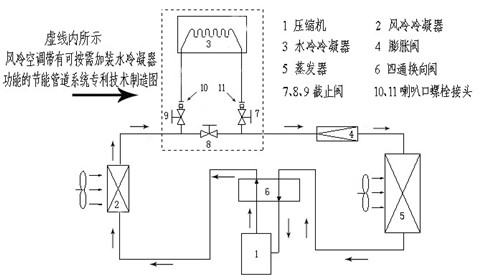

"Air cooling air conditioning can be installed on the water condenser energy
conservation pipeline" patent technology manufacturing drawings
The above two patented technologies have been applied for national invention patents. Now open to the public, welcome car, vehicle parts, pneumatic, hydraulic, pneumatic and mechanical products and air conditioning manufacturers paid use of more than two patents and manufacturing investment in the development of stereotypes products, expand product market. Patented technology, without permission, rights reserved.
Interested cooperation units, please contact us for details. Please be interested in automotive, vehicle parts, pneumatic, air pressure, hydraulic and air conditioning manufacturing experts, discuss and make comments and suggestions with our company. (for more information, please refer to company website http://duxqx.cn/)
Chongqing green science and Technology Development Co Ltd
Inventor: Mr. Deng
Telephone number: 63824909, 63824905
Mailbox: lskjkf@126.com.
February 12, 2014

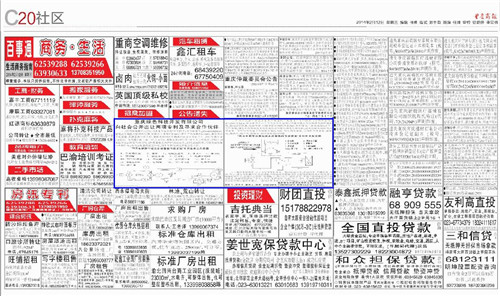

Chongqing Green Technology Development Co., Ltd. in the "Chongqing business daily" published in the advertisement "Chongqing Green Technology Development Co., Ltd. to the public to sell two patents and seek cooperation partners."
